01 / Single-ply conveyor belt

Continental VersaFlex Conveyor Belt

When your name is on the line, reliability isn't optional.

In material conveyance, your name travels with every load. That's why VersaFlex was engineered to carry more than material. Its lightweight carcass and single-ply design delivers toughness and efficiency, with exceptional rip and tear resistance.

Because when your name's on the line, the belt better hold up.

Shop Continental Products VersaFlex Packet (PDF)

Construction: Single-ply, lightweight carcass
Tension ratings: 220 PIW to 550 PIW
Splicing: Vulcanized finger splice or mechanical fasteners
Markets: Quarry, aggregate, mining, cement, sand and gravel, foundries

Advantages

According to Continental:

Versatile design for a wide range of applications
Lightweight carcass construction improves handling
Exceptional rip and tear resistance
Available in tension ratings from 220 PIW to 550 PIW
Optimized finger splice design for vulcanized strength
Compatible with mechanical fasteners for flexible installation

02 / Fabric-reinforced conveyor belt

Continental Fortress XP Conveyor Belts

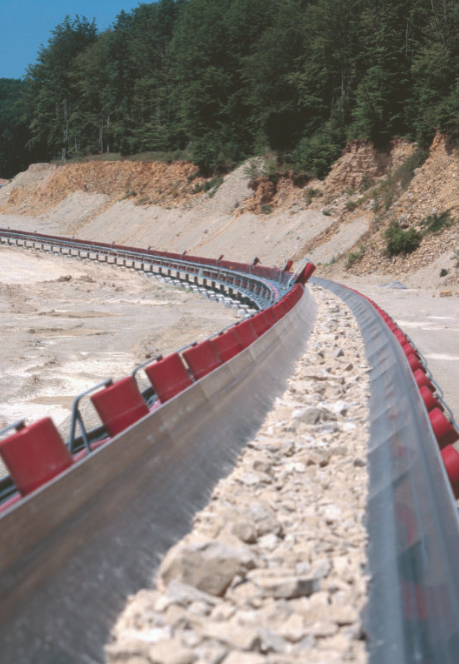

Continental Fortress XP fabric-reinforced conveyor belt

Is your belt tough enough?

Industrial conveyor belts for the most demanding applications.

According to Continental, Fortress XP Industrial Conveyor Belts are manufactured with its Fortress Technology for exceptional performance in the most demanding conditions. Continental says Fortress XP belts protect your operations from costly unscheduled conveyor belt changeouts and deliver a remarkably low cost-per-ton in overall operational costs.

Shop Continental Products Continental Fortress XP Site

Reinforcement: Fabric-reinforced construction
Material handled: Extremely heavy, sharp, and abrasive material
Conditions: Highly abrasive material and hot temperatures
Configuration: Configurable for long-distance conveying

Fortress XP Applications

Continental Fortress XP fabric-reinforced conveyor belts are used across quarry, cement, and mining operations.

Quarries

Aggregate, sand, and gravel

Because of their ability to withstand extremely heavy, sharp, and abrasive material, Fortress XP industrial conveyor belts are used to move aggregate, sand, and gravel at quarries.

Cement

Abrasive, hot material

The cement industry requires conveyor belts that will withstand highly abrasive material and hot temperatures. According to Continental, Fortress XP conveyor belts meet the requirements.

Mining

Long-distance conveying

In coal, hard rock, and other mining operations, conveyor belts are used to transport raw materials quickly over long distances. Continental Fortress XP conveyor belts can be configured to meet the long distance needs of the largest mining operations.

03 / Joined V-belts

Conti V^® Torque Team Supreme Belts

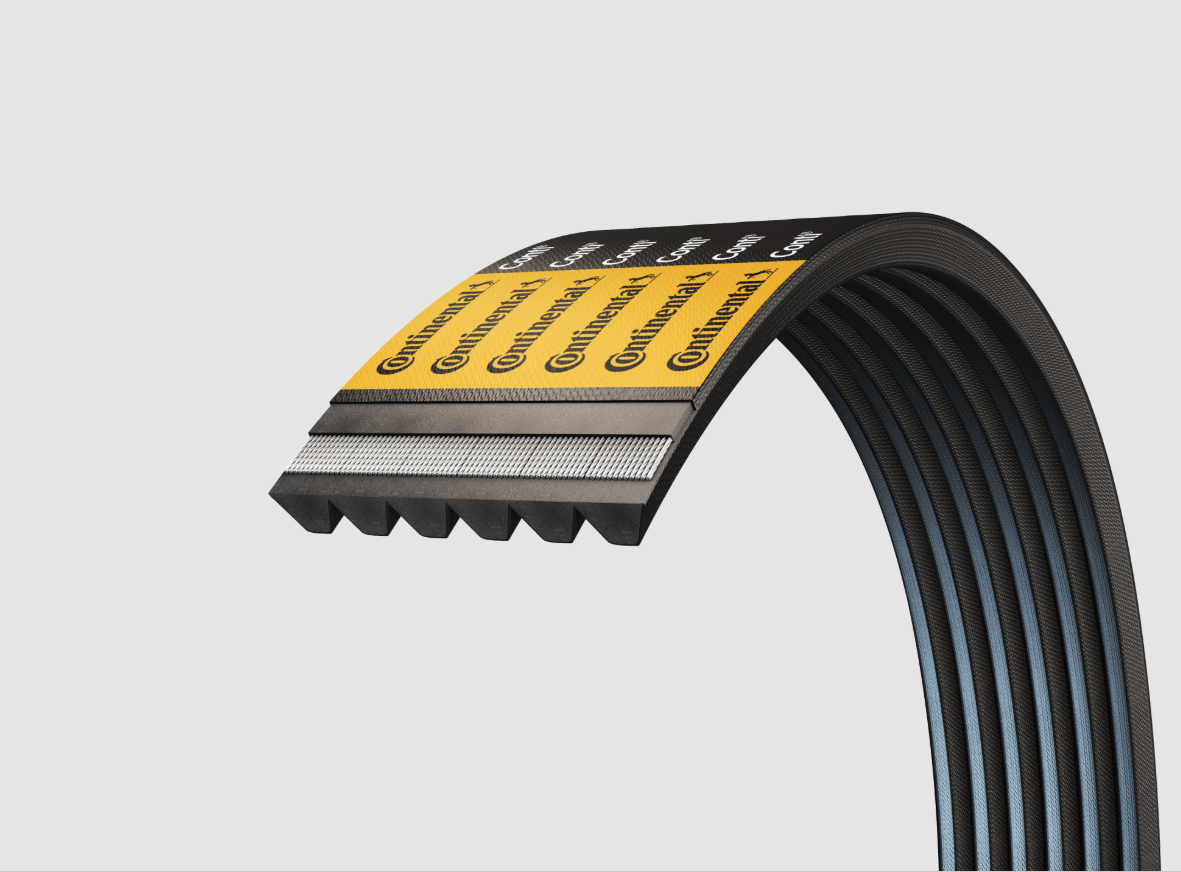

Conti V Torque Team Supreme joined V-belt

Aramid tension members for high-tension drives.

According to Continental, Conti V^® Torque Team Supreme belts are its highest capacity V-belts and are known for strength, durability and performance.

According to Continental, they stand up to high-horsepower, high-tension drive requirements and abusive installations.

Shop V Torque Team Belts Explore Torque Team Belts

Tensile member: Aramid cords
Construction: Wrapped, chloroprene
Temperature: -30°F to 185°F
Conductivity: Electrically conductive per ISO 1813

Construction and performance

The tension members are Aramid cords, twisted from Aramid fiber, then treated for improved adhesion, improved flex life and increased resistance to shrinkage.

The cushion material is made of a highly engineered compound that resists harsh operating environments and compression fatigue. The wrapped construction is rubber compound-impregnated to protect the carcass from abrasion, heat, ozone and oil. Together, these components offer a strong, flexible and efficient belt with extended service life.

Advantages

According to Continental:

Durable chloroprene construction
Aramid tensile member
Decreased drive weight
Reduced maintenance
Reduced vibration and belt turn over
Temperature range from -30°F to 185°F
Electrically conductive in accordance with ISO 1813
Oil, heat, ozone and abrasion resistant

Torque Team / Raw edge cogged

Conti VX^® Torque Team Advance Belts

Conti VX Torque Team Advance raw edge cogged joined V-belt

Polyester tensile cords with a cogged, raw edge construction.

Conti VX^® Torque Team Advance belts are built with polyester tensile cords. These provide the high-strength, high-horsepower rating capacity needed to effectively transmit drive power.

Explore Torque Team Belts Torque Team Flyer (PDF)

Tensile member: Polyester cords
Construction: EPDM, raw edge with cogs
Heat management: Cogs add surface area to dissipate heat
Drive fit: Joined construction for problem drives

Construction and performance

Conti VX^® Torque Team Advance belts are available in a raw edge construction with cogs for increased flexibility and heat dissipation, and have heavy duty belt construction. The cogs also provide a larger surface area to dissipate heat and prolong belt life.

Advantages

According to Continental:

EPDM construction for long service life
Narrow profile ribs provide savings through improved efficiency
Joined belt construction for problem drives
Strong polyester tensile members
Tough fabric backing
Oil, heat, ozone and abrasion resistant
Available in raw edge construction with cogs
Matchmaker length stability
Electrically conductive in accordance with ISO 1813

Torque Team / Polyester tension members

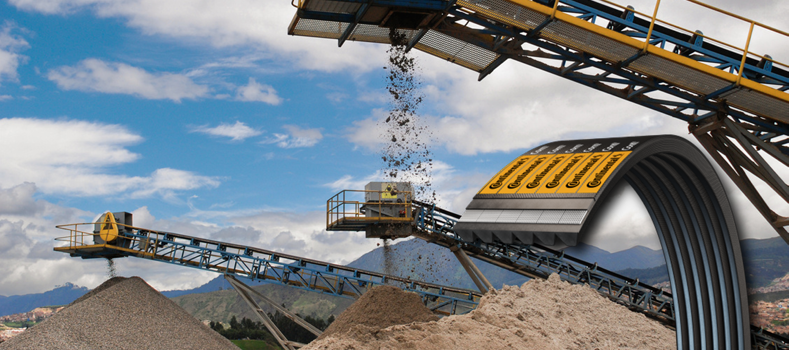

Conti V^® Torque Team Belts

Built to tolerate misalignment.

Conti V^® Torque Team belts are built with strong, durable polyester tension members. This provides the high strength, high-horsepower rating capacity needed to effectively transmit drive power. According to Continental, the tension members are tough enough to tolerate the misalignment that quickly destroys belts.

Shop V Torque Team Belts Torque Team Flyer (PDF)

Tensile member: Polyester tension members
Construction: Raw-edge or wrapped
Temperature: -40°F to +165°F
Alignment: Tolerates misalignment

Construction and performance

The polyester tension member material has very good dimensional stability. According to Continental, drive performance is consistent, reliable and predictable over the life of the belt. Continental then tops the belt off with a tough oil- and abrasion-resistant fabric backing to provide maximum longitudinal flexibility and lateral strength to withstand the dynamic forces acting within a joined belt. The backing also has special adhesion characteristics that enable it to bond to the V sections to maintain the unitary integrity of the belt.

The cushion material in both wrapped and raw-edge construction is fiber-loaded. Raw-edge constructions have a fiber-loaded, latest-technology compound that contributes to heat and oil resistance, as well as strength and durability.

Advantages

According to Continental:

Tolerates misalignment
Available in raw-edge or wrapped construction
Reduced vibration and turn over
Temperature range from -40°F to +165°F
Matchmaker length stability
Electrically conductive in accordance with ISO 1813
Oil, heat, ozone and abrasion resistant

04 / Hydraulic and industrial hose crimp shop

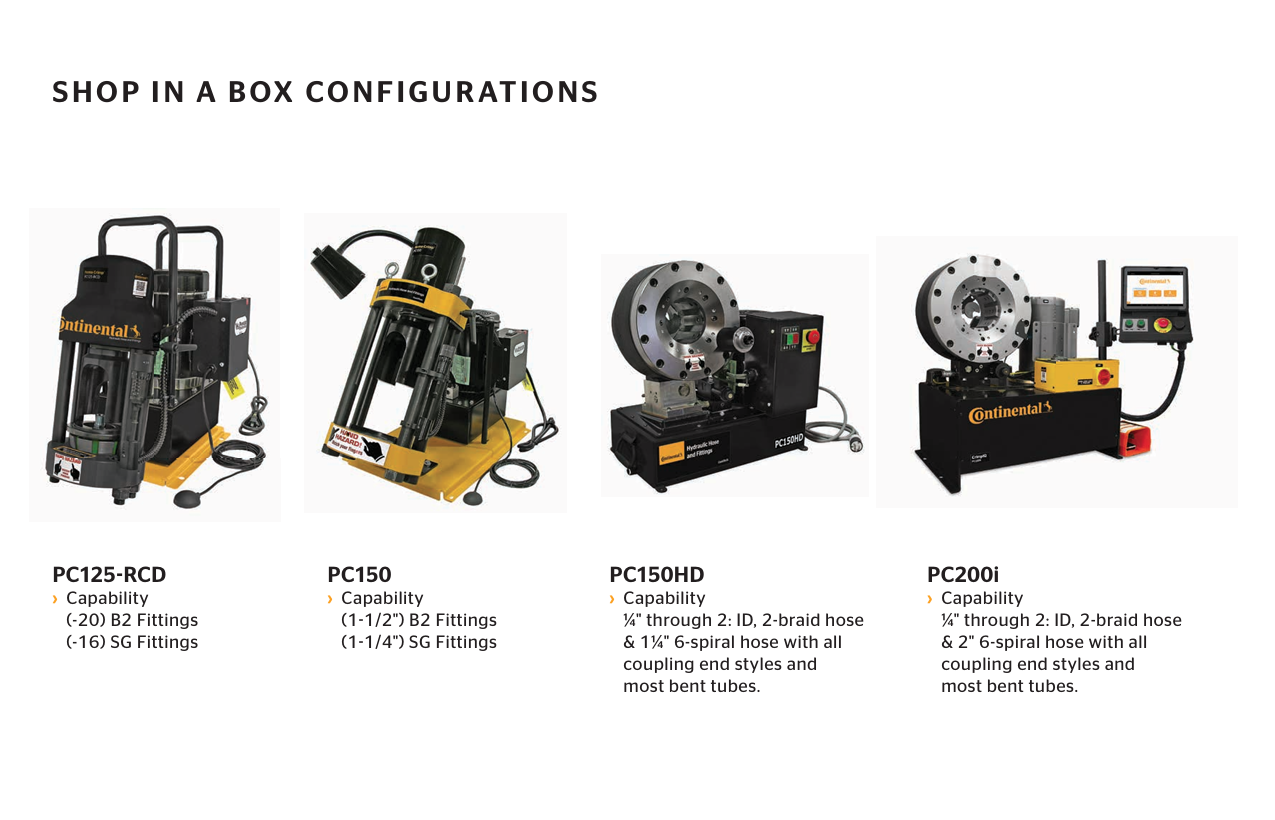

Continental Shop In A Box

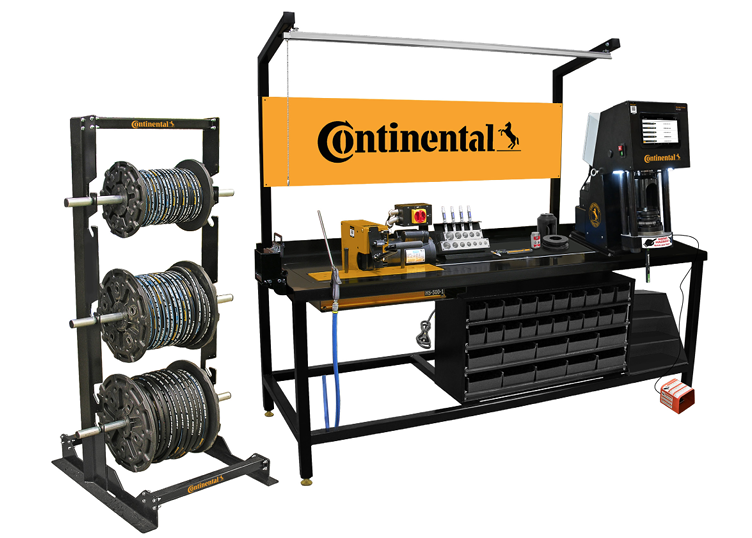

Continental PC160i Shop In A Box product configuration

PC160i Shop In A Box shown.

A turnkey hose crimp shop inside your current location.

Now you can create a hydraulic and industrial hose crimp shop right inside your current location with Continental's Shop In A Box. This turnkey set up contains a crimper and all the accessories you need to produce premium Continental assemblies. With four available options to meet your needs, this new assembly solution is ready to perform.

View the PC125 Shop In A Box Shop In A Box Overview (PDF)
