Cleaning efficiency of a metal blade.
The thin, hard edge of the metal blade delivers high cleaning efficiency and long wear life.
Flexco Aggregate Solutions
Partners in Productivity.
Flexco belt conveyor solutions for aggregate operations: belt cleaning, belt rip prevention, and belt cutting and skiving.
Part of Applied® Aggregate Solutions01 / Belt cleaners

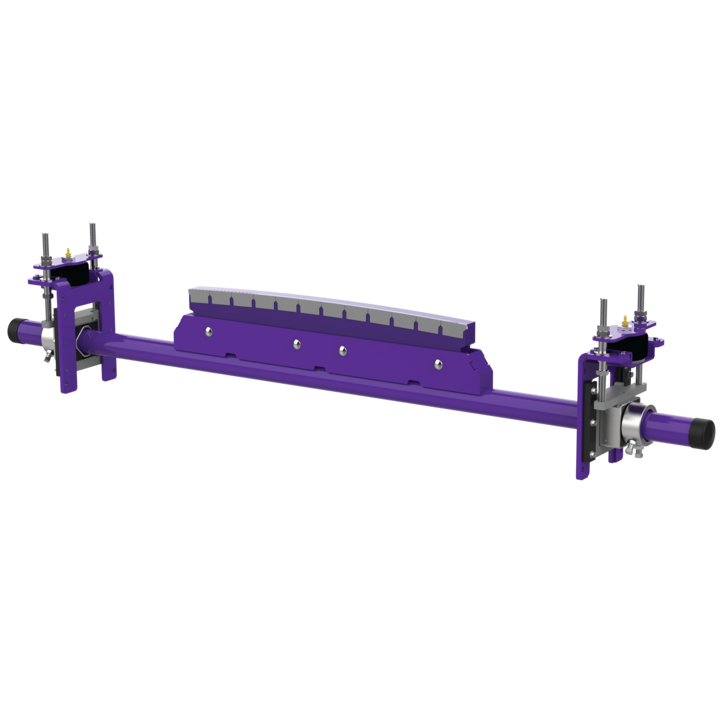

CBS™ Continuous Blade Secondary™ Belt Cleaner
A clean belt is just beyond this rugged blade.
The CBS™ Continuous Blade Secondary™ Belt Cleaner is designed with an unsegmented blade for excellent cleaning efficiency and low maintenance.
The heavy-duty blade features a steel backbone holding a carbide leading edge which is encapsulated in Flexco's proprietary polyurethane to provide a long-wearing solution for your belt. When paired with a spring or air tensioner, the blade maintains constant pressure on the belt for excellent cleaning efficiency.
- CEMA rating
- Class 4 cleaner
- Belt widths
- 18 to 96" (450 to 2400 mm)
- Tensioning
- SST XD spring or optional SAT XD air
- Blade options
- Curved for worn belts, flat for new belts
Features and Benefits
Made for mining conveyors.
Made from heavy-duty, corrosion-resistant steel, the CBS™ is available in sizes for belt widths from 18 to 96" (450 to 2400 mm). Additional sizes are available upon request.
Safe to service.
All service can be performed from a safe position at the side of the conveyor.
CBS™ Design Highlights
.png?hsLang=en)

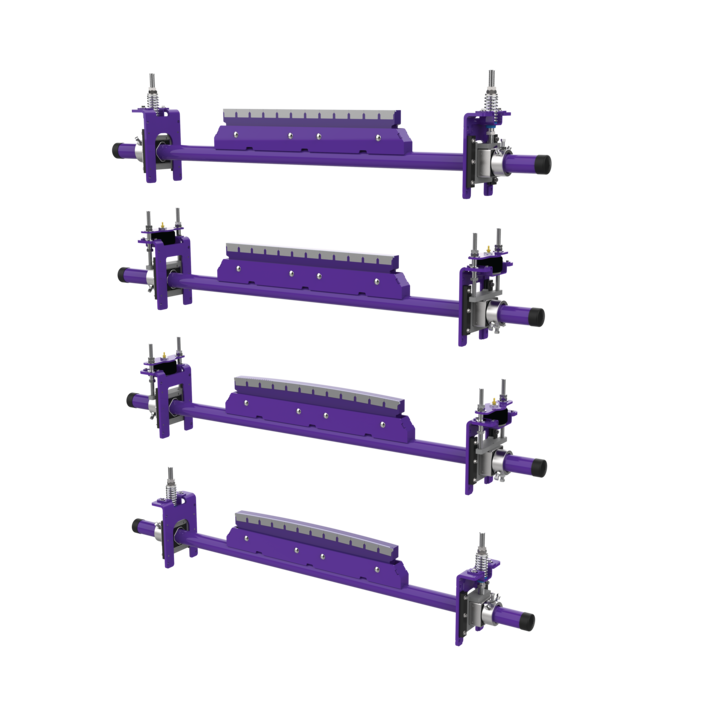

View the full CBS Series overview ↗
Ordering Information

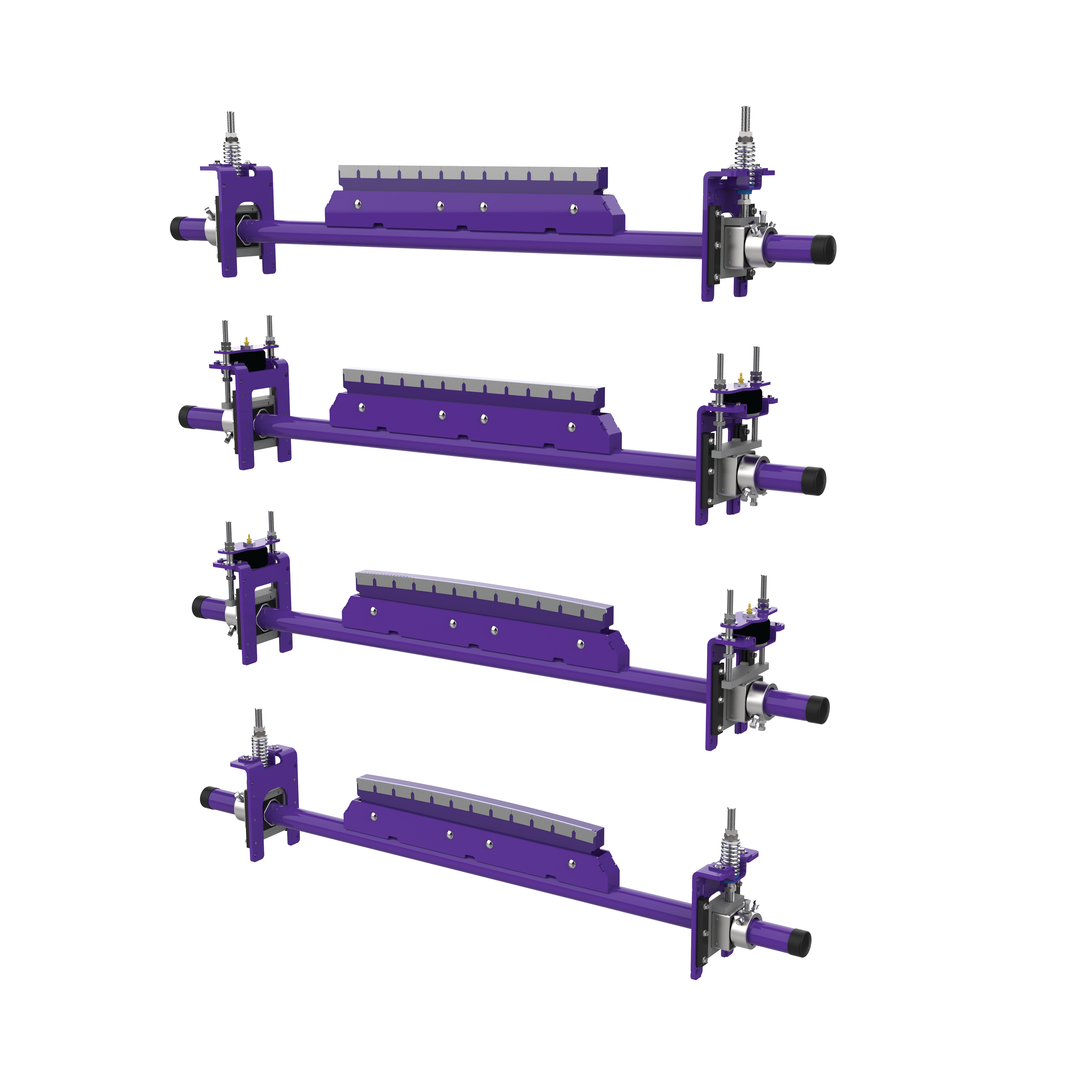

CBS™ is offered with SST XD or SAT XD tensioners, in flat or curved blade, plus replacement blades.
Built around the blade

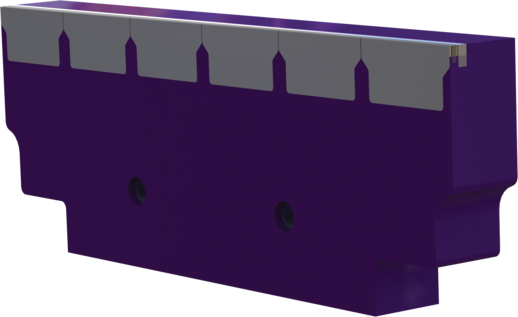

- Highly efficient, one-piece carbide/polyurethane blade
- Blade face is slick to help shed material

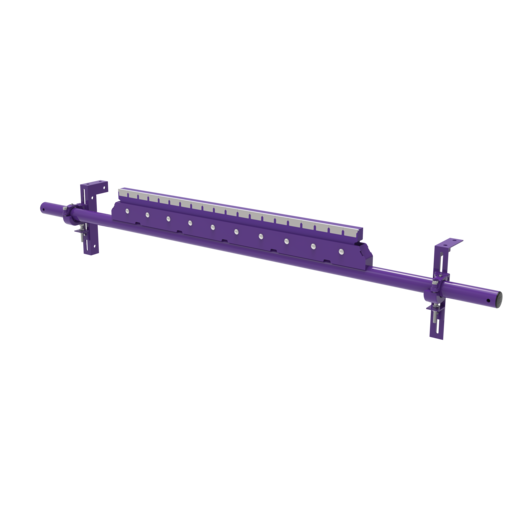

- Blade secured by carriage bolts, which makes blade changes a quick and easy process
- SST XD spring tensioner for self-adjusting tensioning with easy retensioning adjustments

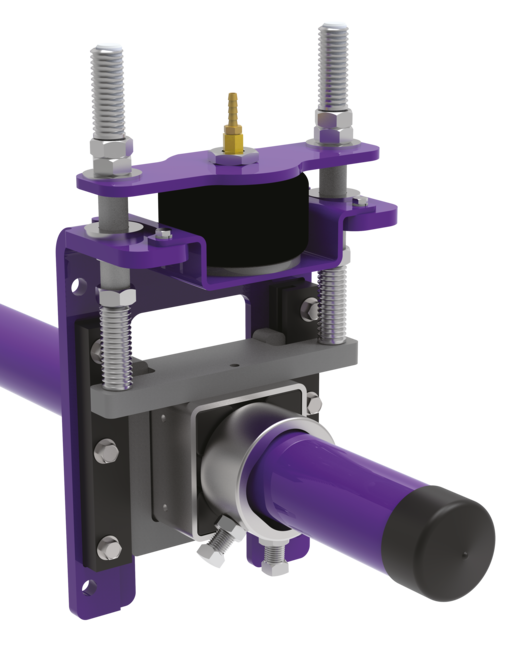

- Optional SAT XD Air Tensioner
- Heavy-duty, 2-7/8" (73 mm) pole for those tough applications
- Curved blade for worn or cupped belts
- Flat blade for new or lightly used belts
| Maximum belt speed | 1000 FPM (5 m/s) for mechanical fasteners; 1200 FPM (6 m/s) for vulcanized belts |
|---|---|
| Temperature rating | -30° to 180°F (-35° to 82°C) |
| CEMA cleaner rating | Class 4 |
| Blade material | 1/4" (6 mm) thick highly efficient one-piece carbide/polyurethane blade |
| Available for belt widths | 18 to 96" (450 to 2400 mm) |
| Horizontal clearance required | 5" (125 mm) |
| Vertical clearance required | 10" (254 mm) |
| Pole length | Cleaner size + 54" (1350 mm) |
| Maximum conveyor span | Cleaner size + 44" (1100 mm) |
02 / Belt rip prevention

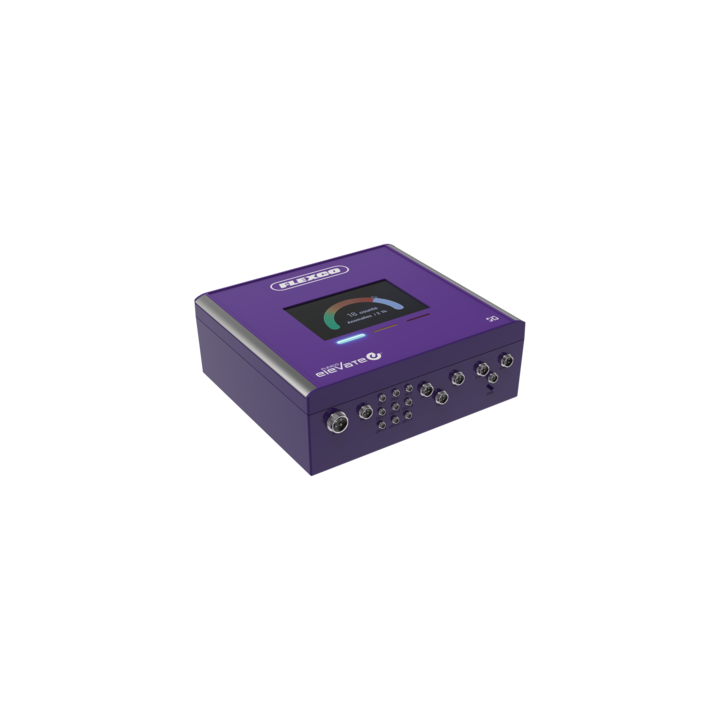

Flexco Elevate® Belt Rip Prevention
Conveyor data. Actionable insights.
The Flexco Elevate® Belt Rip Prevention system is an intelligent platform solution designed to protect and optimize conveyor systems.
The platform collects and correlates data from multiple sensors, using an AI-based predictive model to help identify potential issues and support proactive maintenance.
Rip and anomaly detection Rip detection, rip prevention, and anomaly detection.
Component monitoring Motor, gearbox, bearing, and roller monitoring.
Energy and electrical analysis Energy efficiency analysis and electrical network monitoring.
Material flow insights Mass flow calculation and iScale functionality.
Talk with an Applied® representative about Flexco Elevate® for your conveyor system.
03 / Cutting and skiving

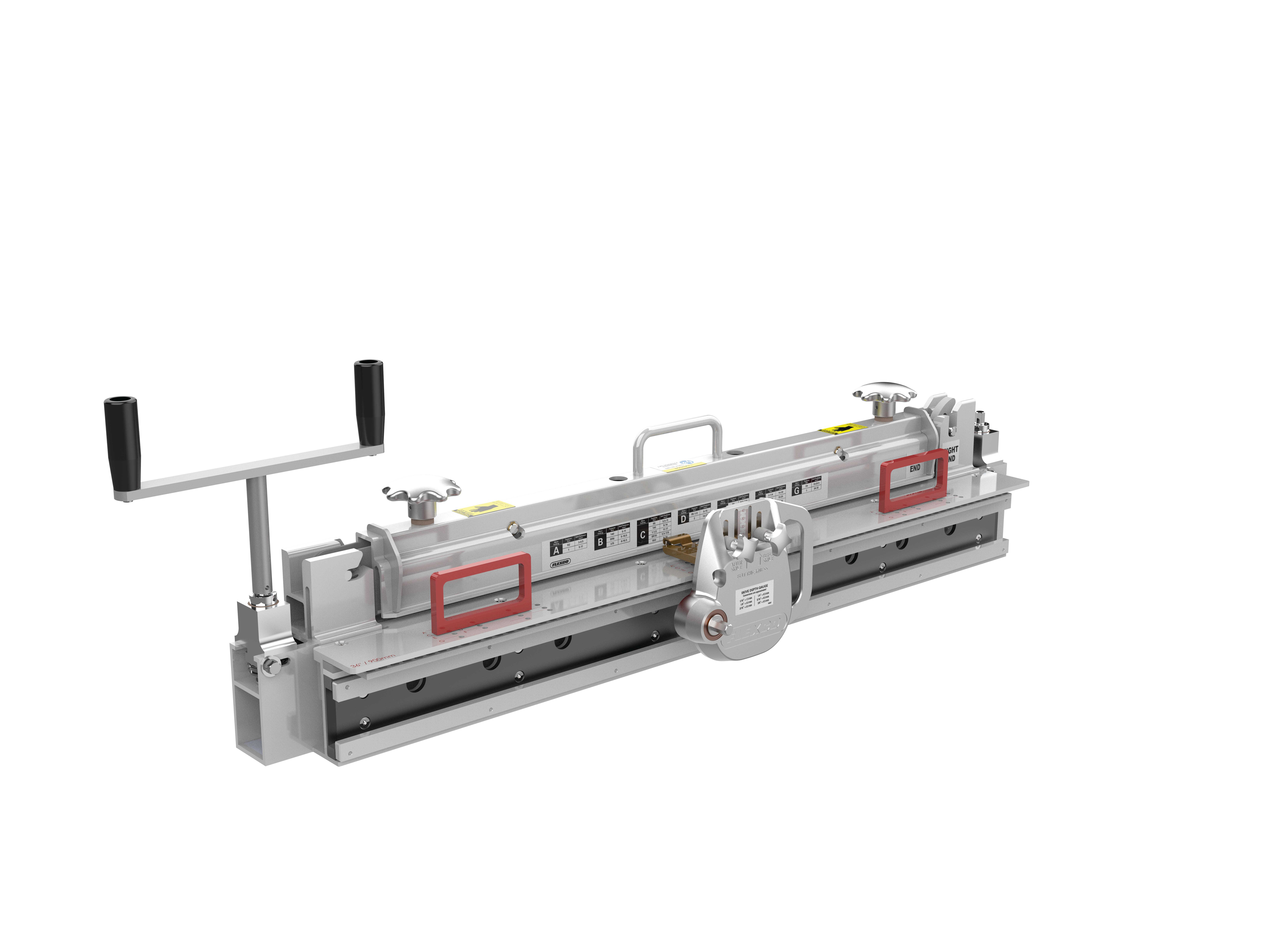

900 Series Belt Cutter/Skiver
Cut and skive your belt quickly, safely and accurately.
The 900 Series Belt Cutter/Skiver is a two-in-one belt maintenance tool that allows the user to cut and skive a belt safely and accurately. Designed with operator safety in mind, the blade is completely enclosed during the entire cutting and skiving process.
The cutter blade is captured within the extrusion, ensuring a perpendicular cut. The skiver provides a close fit to the fastener with a 90° skive for better cleaner interaction.
- Belt types
- Rubber and PVC/PVG
- Belt widths
- 24 to 84 in. (600 to 2100 mm)
- Skive depth
- Up to 1/2" (12.5 mm) per pass
- Operator safety
- Blade fully enclosed while cutting and skiving
Features and Benefits
The 8 point knobs and drive handle make using this tool operator friendly. The belt stop and skive chart also allow the operator to easily select and set the width of the skive for the appropriate fastener size.
Single-sided clamp feature
Allows the cut belt to fall free on one side, eliminating the need for the blade to cut through two clamped surfaces, thus reducing operator effort.
Multiple ways to drive the skiver.
The skiver can be manually or drill powered, the socket needed for either method is provided.
Same socket size on the cutter and skiver.
The skiver and cutter use a common socket size, allowing for both to be driven with the drive handle. It is not recommended that users use a drill to power the cutter.
90° skive.
This angle provides a closer fit to the fastener size needed for better cleaner interaction.
Independent settings on the skiver.
The settings for the "belt thickness before skive" and "belt thickness after skive" allow the user to set the skive depth to the belt thickness needed for a fastener or skive off a desired amount.
Even skived thickness of the belt.
The skiver will skive the entire belt to the specified thickness, using the bottom of the belt as a reference point to produce a consistent belt thickness along the whole belt width.
Quick clamp feature
Aligns the clamp beam in the uprights and drops it into place.
Guides and Resources
Plan your rebuild, prepare critical spares, and explore aggregate industry resources.
.png?width=400)
