Bayloc® Dry
Disconnects

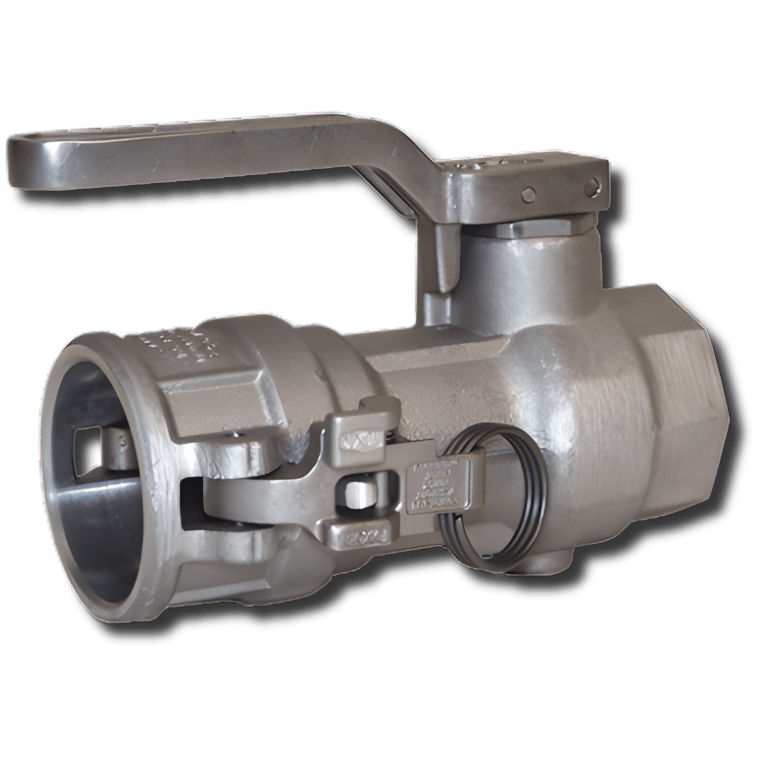

Coupler x Female NPT
Quick and spill-free connection and disconnection for
hazardous liquid transfer applications.
Quick and Spill-Free Connections
Dry disconnect couplings are designed for the quick and spill-free connection and disconnection of hoses and pipelines when transferring expensive hazardous product that is costly to clean up, reprocess, or dispose of.
- Compatible with most cam and groove style dry disconnects
- Helps prevent spillage from normal or accidental disconnects
- Spring-loaded sealing device "snaps" closed automatically
- Protects workers and the environment
- Fully interchangeable with Kamvalok (OPW) fittings
Engineered for Safety
Bayloc® dry disconnect couplers are engineered with advanced safety mechanisms to minimize spills and reduce risk during hazardous fluid transfer.
Automatic Closing Poppet
Spring-loaded sealing device snaps closed if valve disconnects with poppet open
EZ Boss-Lock Cam Arms
Standard on all 1-1/2" and 2" fittings for high security from vibration or snagging
Stainless Steel Internals
Aluminum fittings have stainless internals equivalent to 304 stainless
Heavy-Duty Construction
One-piece stainless crank and link provide long service life
Adapter x Female NPT
Bayloc® adapters are designed to work with Bayloc® couplers and ensure proper performance.
Two-Piece Adapter Design
Easy rebuilding of adapters for extended service life
Kamvalok® Interchangeable
Fully interchangeable with Kamvalok® (OPW-style) fittings
Spring-Loaded Safety
Sealing device snaps closed should valve disconnect with poppet open
Expert Support Available
Contact us at 800.655.6552 for chemical compatibility and sizing
Explore Bayloc Dry Disconnects
Choose from a variety of couplers and adapters to match your application requirements
Couplers

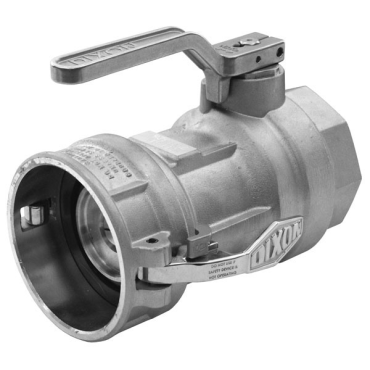

DBC79-300
Stainless Steel Coupler x Female NPT

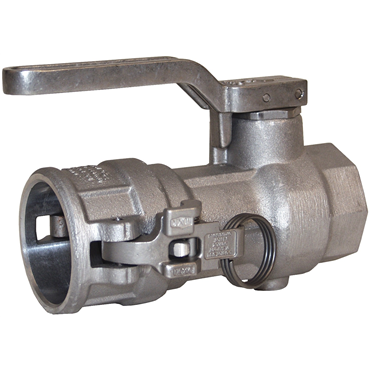

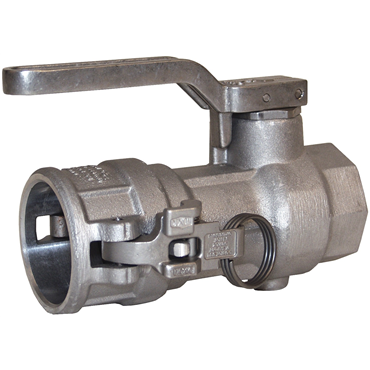

DBC61-150
Aluminum Coupler x Female NPT
DBC77-200-GL
Stainless Steel Greaseless Coupler x Female NPT
Adapters

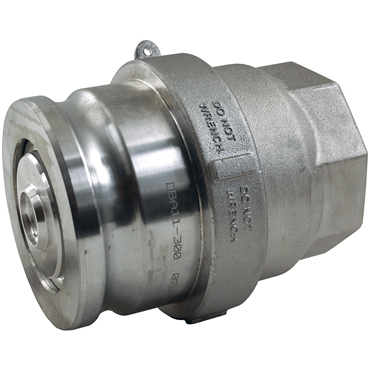

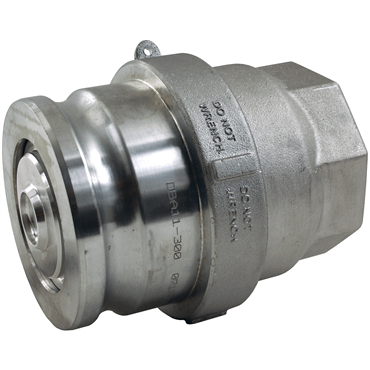

DBA11-150
1.5" Aluminum Adapter x Female NPT

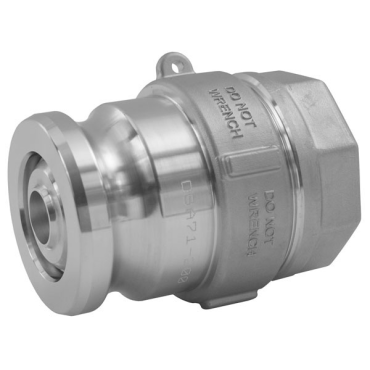

DBA63-200
2.5" Adapter x Female NPT

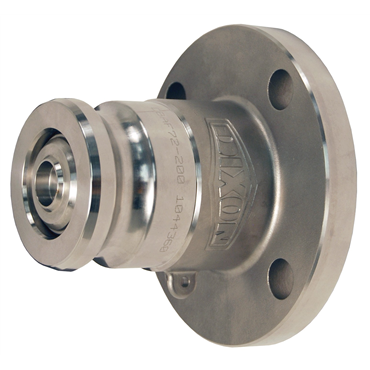

DBAF72-1520
Stainless Steel Adapter
